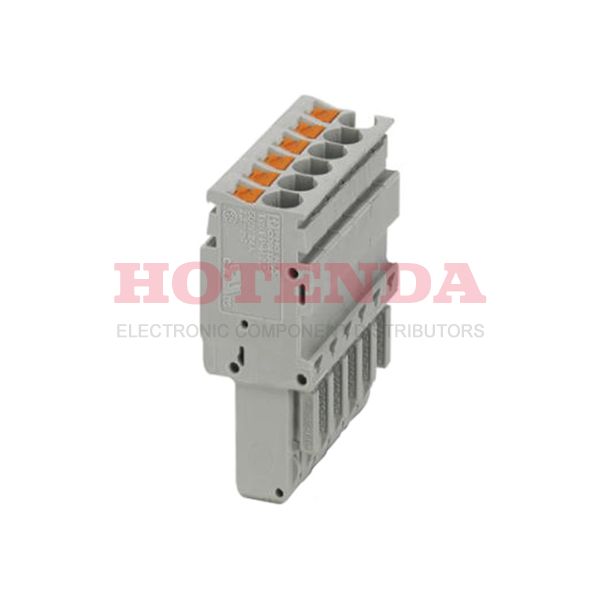

3209918

3209918

3209918

Phoenix Contact

3209918 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3209918 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2012
Series CLIPLINE COMBI PP-H
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Push-In
Type Plug, Female Sockets
Number of Positions 6
Color Gray
Voltage - Rated 500V
Insulation Height 1.535 39.00mm
Current Rating24A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Height 39mm
Length 15.8mm
Width 31.2mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:1088 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.313507$7.313507
10$6.899534$68.99534
100$6.508995$650.8995
500$6.140562$3070.281
1000$5.792982$5792.982

3209918 Product Details

3209918 Overview


A Push-In packaging is included.Free Hanging (In-Line) is the mounting type.A Bulk case is used for packaging.CLIPLINE COMBI PP-H Series product.There's a Free Hanging on the part.Many Plug, Female Sockets products share the same benefits as this part.

3209918 Features


CLIPLINE COMBI PP-H series

3209918 Applications


There are a lot of Phoenix Contact 3209918 Terminal Blocks applications.

  • Transportation
  • Data Technology
  • Refrigeration control
  • Datacom
  • Telecommunications
  • All Electrical Machinery
  • Medical technology
  • Industrial Automation
  • Military Technology
  • Measuring & Control Technology
