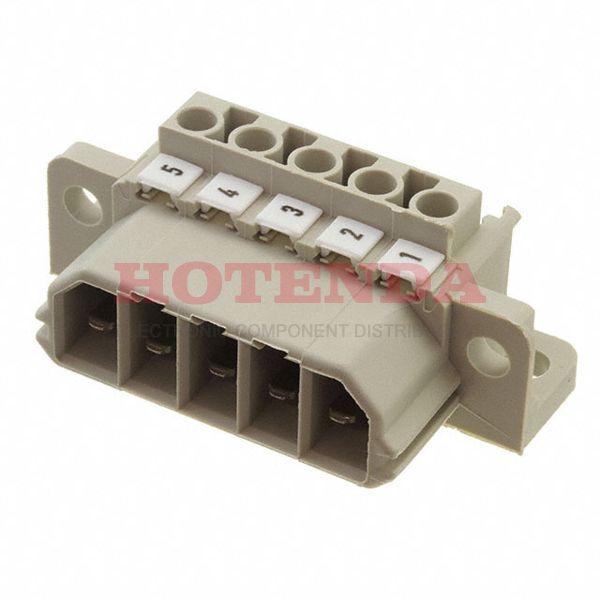

Name: 1612040000
Brand: Weidmüller
SKU: 1612040000
Price: 8.46000 USD
Availability: InStock

new-10%

1612040000

Manufacturer part number:1612040000

Manufacturer:Weidmüller

Description:1612040000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1612040000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Shell Material	POLYAMIDE
Housing Material	Thermoplastic, Wemid
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Powermate STV
JESD-609 Code	e4
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Type	Plug, Blade Pins
Color	Gray
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.276 7.00mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.843 21.41mm
Current Rating	32A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Number of Contacts	5
UL Flammability Code	94V-0
Housing Color	Grey
Empty Shell	NO
Voltage	600V
Max Current Rating	25A
Number of Levels	1
Current	25A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Silver
Wire Gauge or Range - AWG	12-22 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-4mm2
Current - IEC	32A
Screw Size	M3
Stripping Length	9mm
Length	30.2mm
Width	21.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1612040000 Product Details

1612040000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.It has been determined that a Bulk case is necessary to package the product.It's from the Powermate STV Series.Several benefits come from the Mating Flange feature.Free Hanging, Panel represents the mounting point for the part.Device runs at -50°C~100°C Operating Temperature.There are a lot of advantages this part has in common with other Plug, Blade Pins parts.
