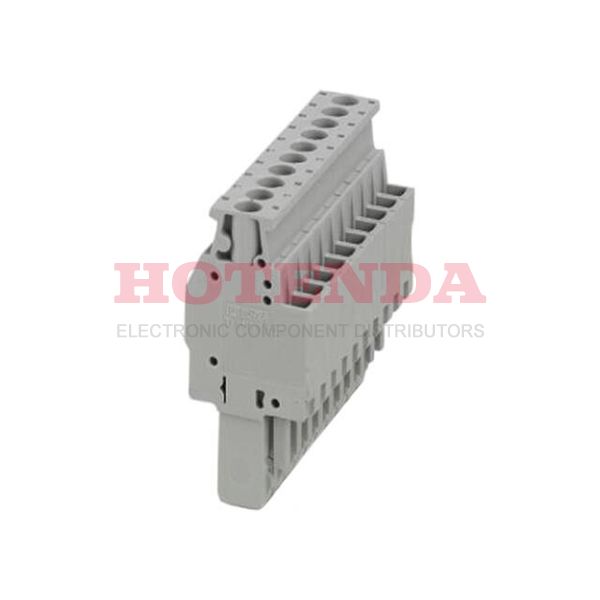

3045499

3045499

3045499

Phoenix Contact

3045499 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3045499 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 400.000006g
PackagingBulk
Published 2011
Series CLIPLINE COMBI UPBV
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 10
Color Gray
Voltage - Rated 500V
HTS Code8536.69.40.40
Insulation Height 1.850 47.00mm
Reach Compliance Code not_compliant
Current Rating24A
Termination Style Screw
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire/Cable Gauge 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.14-4mm2
Wire Strip Length 9mm
Current - IEC 24A
Screw Size M3
Length 21mm
Width 52mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:651 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$10.38000$10.38
10$10.09500$100.95
50$9.43500$471.75
100$8.68020$868.02
250$8.01976$2004.94
500$7.64236$3821.18

3045499 Product Details

3045499 Overview


This device is mounted in the Free Hanging (In-Line) position.Packaging is performed using a Bulk case.The product is a part of the CLIPLINE COMBI UPBV Series.By Free Hanging, the part is mounted.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

3045499 Features


CLIPLINE COMBI UPBV series

3045499 Applications


There are a lot of Phoenix Contact 3045499 Terminal Blocks applications.

  • Communication
  • Military Technology
  • Embedded systems
  • LED municipal outdoor and street lighting
  • Data Technology
  • Energy efficient lighting (LED)
  • Telecommunications
  • Electrical substations
  • Refrigeration control
  • Industrial Automation
