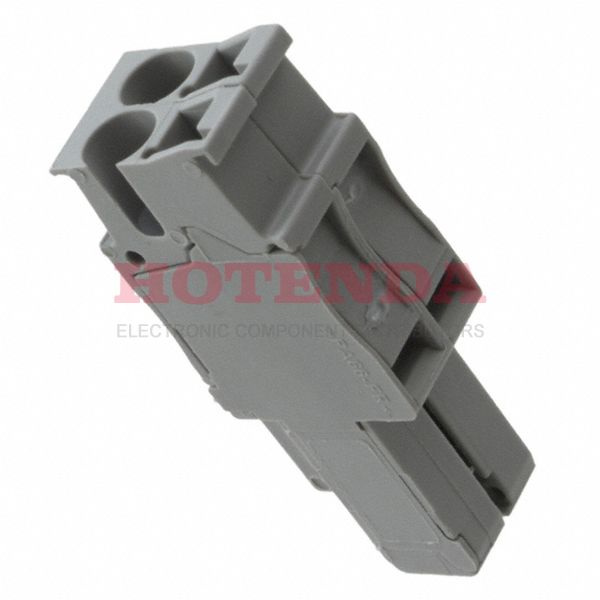

Name: 3040261
Brand: Phoenix Contact
SKU: 3040261
Price: 3.87000 USD
Availability: InStock

new-10%

3040261

Manufacturer part number:3040261

Manufacturer:Phoenix Contact

Description:3040261 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:3040261 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	6.099995g
Packaging	Bulk
Published	2010
Series	CLIPLINE COMBI SP
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	IDC, IDT
Type	Plug, Female Sockets
Number of Positions	2
Color	Gray
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, UL 94V-0, SAFETY APPROVAL GOST UL; VDE
HTS Code	8536.69.40.40
Pitch	10.4mm
Insulation Height	1.535 39.00mm
Current Rating	24A
Termination Style	Screwless - Spring Cage, Tension Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	600V
Number of Levels	1
Current	20A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-28 AWG
Number of Ways	2
Safety Approval	BV; CB; CSA; CUL; DNV; GL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.08-4mm2
Wire Strip Length	10mm
Current - IEC	24A
Fastening Method	SPRING LOADED
Height	39mm
Length	15.8mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

3040261 Product Details

3040261 Overview

Packaging is IDC, IDT.Free Hanging (In-Line) is the mount type.We package the product with a Bulk case.The product is a member of the CLIPLINE COMBI SP Series.There are also features like PA, UL 94V-0, SAFETY APPROVAL GOST UL; VDE, just to name a few.This part is mounted by Free Hanging. The benefts of this part are similar to those of other Plug, Female Sockets products.
