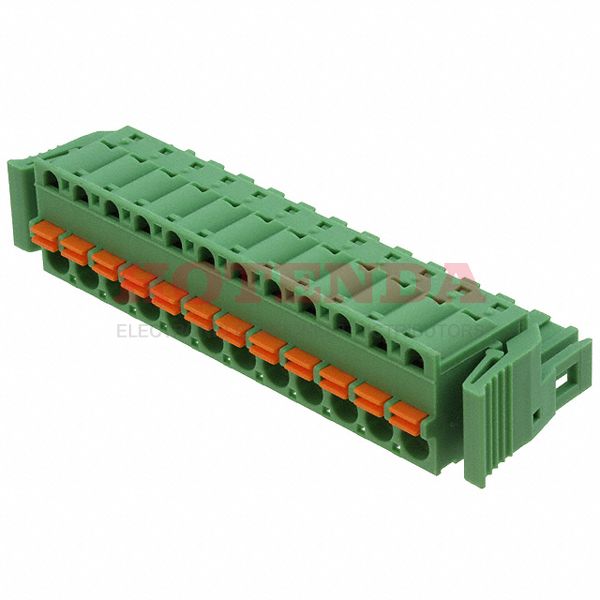

1925799

1925799

1925799

Phoenix Contact

1925799 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1925799 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 22.189994g
PackagingBulk
Published 2003
Series COMBICON FKC
Feature Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeaturePA, UL 94V0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 12
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Height 25.1mm
Length 15mm
Width 74.38mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:403 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$18.02000$901

1925799 Product Details

1925799 Overview


This product is packaged in a Socket box.This device's mounting type is Free Hanging (In-Line).This product is packaged in a case marked Bulk.It's part of the COMBICON FKC Series.Furthermore, there are other features available, such as PA, UL 94V0, to name a few.A number of advantages can be derived from its Latch Lock, Retention Latches (Non-Wire Side) feature.There's a Free Hanging mount on the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1925799 Features


COMBICON FKC series

1925799 Applications


There are a lot of Phoenix Contact 1925799 Terminal Blocks applications.

  • All Electrical Machinery
  • Datacom
  • Medical technology
  • Industrial Automation
  • Anywhere power is distributed
  • Telecommunications
  • Instrumentation
  • Embedded systems
  • Energy efficient lighting (LED)
  • Data Technology
