Name: 1990009
Brand: Phoenix Contact
SKU: 1990009
Price: 0.36000 USD
Availability: InStock

new-10%

1990009

Manufacturer part number:1990009

Manufacturer:Phoenix Contact

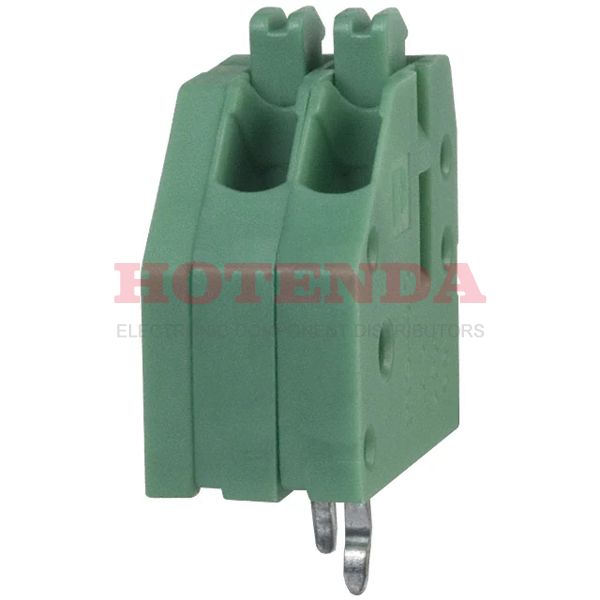

Description:0.098 2.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG COMBICON PTSA

Case Package:SOT-23

Datasheet:1990009 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	860.011134mg
Packaging	Bulk
Series	COMBICON PTSA
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.098 2.50mm
Current Rating	2A
Voltage - Rated AC	160V
Approval Agency	UL, VDE
Number of Contacts	2
Wire Gauge	20-26 AWG
Voltage	300V
Max Current Rating	2A
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Wire/Cable Gauge	20 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	2
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Stripping Length	8mm
Fastening Method	SPRING LOADED
Height	13.1mm
Length	12mm
Width	16.7mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1990009 Product Details

1990009 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON PTSA Series.Other features include PA, UL 94V-0, to name just a few.There is a mounting hole at Through Hole.
