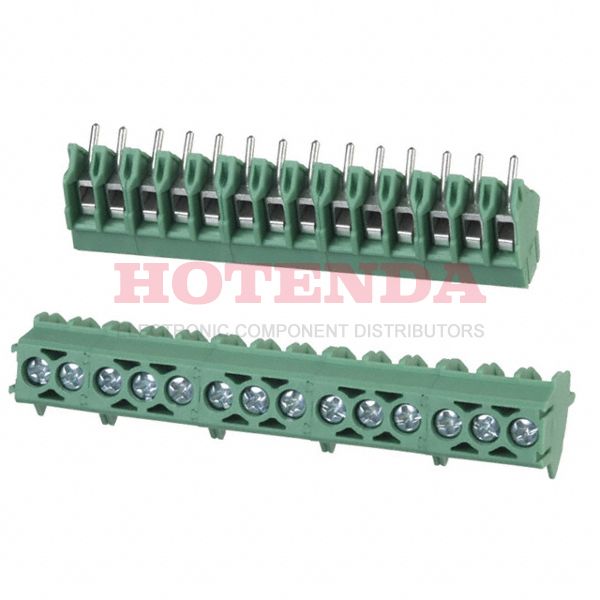

Name: 1989078
Brand: Phoenix Contact
SKU: 1989078
Price: 3.11000 USD
Availability: InStock

new-10%

1989078

Manufacturer part number:1989078

Manufacturer:Phoenix Contact

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screw 1 Levels 16-26 AWG COMBICON PTA

Case Package:SOT-23

Datasheet:1989078 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	7.070003g
Packaging	Bulk
Series	COMBICON PTA
Published	2005
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Number of Positions	14
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Reach Compliance Code	unknown
Current Rating	17.5A
Wire Gauge	16-26 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	14
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw
Screw Thread	M2
Height	9.9mm
Length	49mm
Width	11.2mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1989078 Product Details

1989078 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON PTA Series.Among other features are PA, UL 94V-0, to name only a few.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.
