Name: 1987737
Brand: Phoenix Contact
SKU: 1987737
Price: 0.82000 USD
Availability: InStock

new-10%

1987737

Manufacturer part number:1987737

Manufacturer:Phoenix Contact

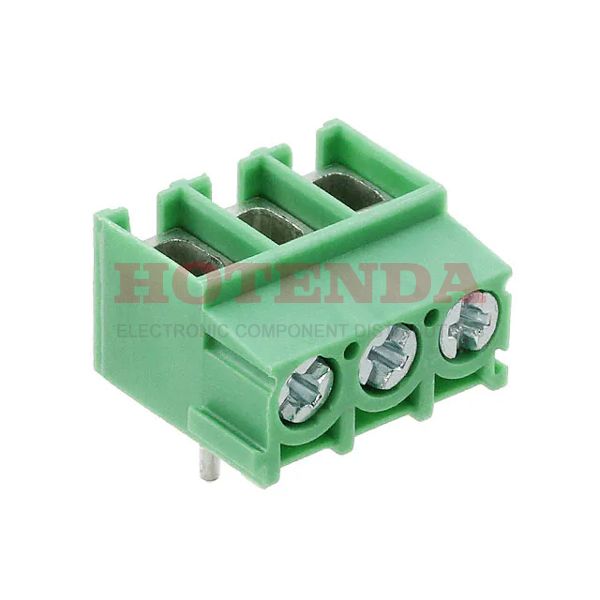

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw 1 Levels 12-20 AWG COMBICON PT

Case Package:SOT-23

Datasheet:1987737 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	311.844754g
Packaging	Bulk
Series	COMBICON PT
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0
Pitch	0.197 5.00mm
Reach Compliance Code	unknown
Current Rating	32A
Approval Agency	CB, UL, VDE
Wire Gauge	12-20 AWG
Voltage	300V
Number of Levels	1
Current	20A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	10 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.45-0.5 Nm (3.9-4.4 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Vertical with Board
Wire Termination	Screw
Screw Thread	M3
Wire Cross Section	4 mm2
Height	9mm
Length	13.5mm
RoHS Status	RoHS Compliant

1987737 Product Details

1987737 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON PT Series.Other features include PA, UL 94V-0, to name just a few.There is a mounting hole at Through Hole.
