Name: 1985292
Brand: Phoenix Contact
SKU: 1985292
Price: 1.90000 USD
Availability: InStock

new-10%

1985292

Manufacturer part number:1985292

Manufacturer:Phoenix Contact

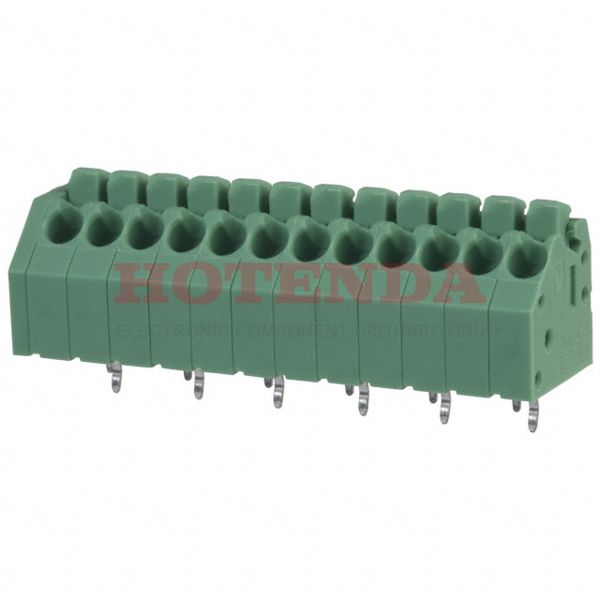

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-24 AWG COMBICON PTSA

Case Package:SOT-23

Datasheet:1985292 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	5.749992g
Packaging	Bulk
Series	COMBICON PTSA
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Reach Compliance Code	unknown
Current Rating	2A
Approval Agency	UL, VDE
Number of Contacts	12
Wire Gauge	16-24 AWG
Voltage	300V
Max Current Rating	2A
Number of Levels	1
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Wire/Cable Gauge	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	12
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Stripping Length	8mm
Fastening Method	SPRING LOADED
Height	13.1mm
Length	12mm
Width	43.5mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1985292 Product Details

1985292 Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON PTSA belongs to the COMBICON PTSA Series.Further, there are features such as PA, 94V-0, to name only a few.There is a Through Hole mount on the part.
