1984808

1984808

1984808

Phoenix Contact

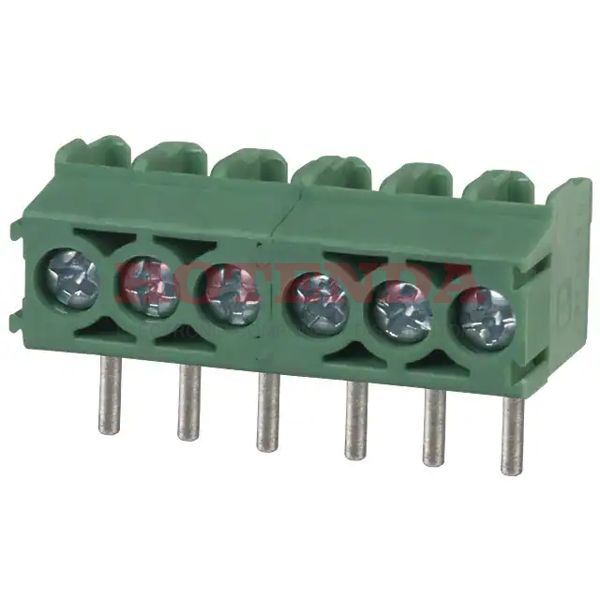

0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw 1 Levels 16-26 AWG COMBICON PT

SOT-23

1984808 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 2.930008g
PackagingBulk
Series COMBICON PT
Published 2005
Feature Interlocking (Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Number of Positions 6
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
Additional FeaturePA, 94V-0
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 7.6mm
Current Rating17.5A
Approval Agency UL
Wire Gauge16-26 AWG
Voltage 300V
Max Current Rating 10A
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 6
Safety Approval UL
Mating Orientation Vertical with Board
Wire TerminationScrew
Screw Thread M2
Stripping Length 5mm
Height 7.6mm
Length 9mm
Width 9.2mm
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:4020 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.003441$1.003441
10$0.946643$9.46643
100$0.893059$89.3059
500$0.842509$421.2545
1000$0.794819$794.819

1984808 Product Details

1984808 Overview


Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON PT Series, it can be found in this category.There are also other features such as PA, 94V-0, to name only a few.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.

1984808 Features


COMBICON PT series


1984808 Applications


There are a lot of Phoenix Contact
1984808 Terminal Blocks applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
