Name: 1969409
Brand: Phoenix Contact
SKU: 1969409
Price: 29.11000 USD
Availability: InStock

new

1969409

Manufacturer part number:1969409

Manufacturer:Phoenix Contact

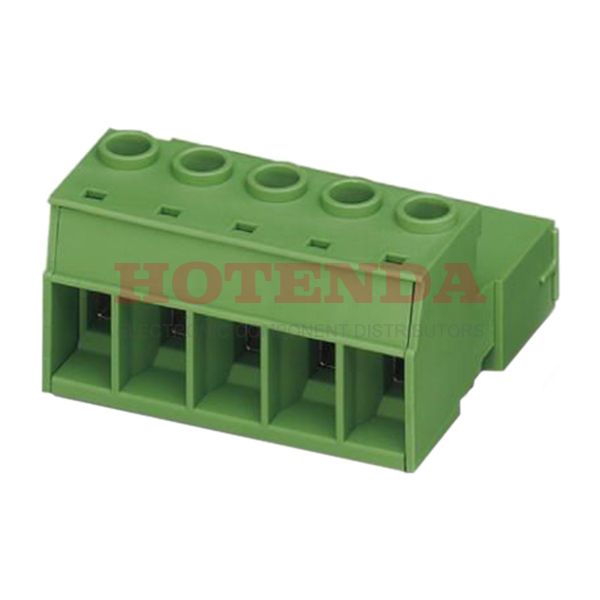

Description:Bulk 0.400 10.16mm Green 1 Levels Free Hanging (In-Line) Plug, Male Pins COMBICON IPC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1969409 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Silver
Housing Material	Polyamide (PA), Nylon
Weight	46.989987g
Packaging	Bulk
Series	COMBICON IPC
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.400 10.16mm
Orientation	Right Angle
Insulation Height	1.094 27.80mm
Current Rating	76A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Max Supply Voltage	1kV
Max Current Rating	76A
Number of Levels	1
Current	55A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	6 AWG
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Number of Positions Per Level	5
Screw Size	M4
Height	44.1mm
Length	27.8mm
Width	53.84mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1969409 Product Details

1969409 Overview

Packaging is in the form of Plug, Screw.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON IPC Series.Other features include PA, UL 94V-0, to name just a few.There is a mounting hole at Free Hanging.There should be no voltage above 0 on the supply line for this chip.There are many benefits that this part shares with other Plug, Male Pins products as well.
