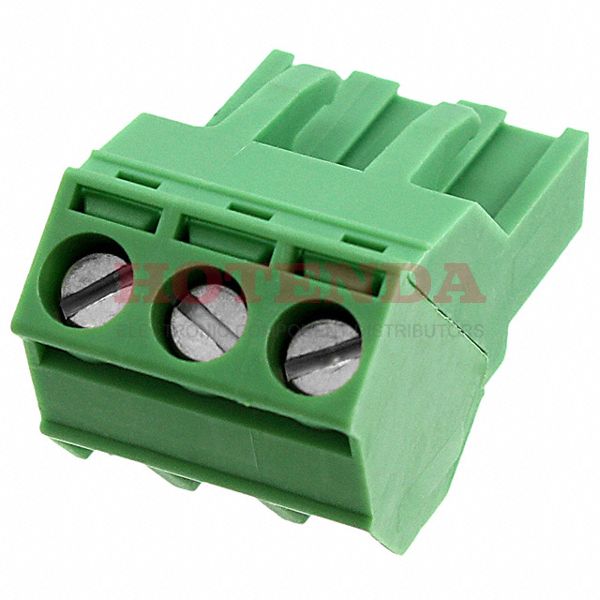

Name: 1826296
Brand: Phoenix Contact
SKU: 1826296
Price: 4.38000 USD
Availability: InStock

new-10%

1826296

Manufacturer part number:1826296

Manufacturer:Phoenix Contact

Description:1826296 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1826296 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	131g
Packaging	Bulk
Published	2008
Series	COMBICON SMSTB
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15.5mm
Insulation Height	0.610 15.49mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL, cULus
Number of Contacts	3
Housing Color	Green
Voltage	300V
Number of Circuits	3
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	3
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	3
Plug Wire Entry	225°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	3
Screw Size	M3
Stripping Length	7mm
Height	15.5mm
Length	15.24mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1826296 Product Details

1826296 Overview

This product is packaged in a Screw, Socket carton.This device's mounting type is Free Hanging (In-Line).This product is packaged in a case marked Bulk.COMBICON SMSTB Series product.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.The part is mounted by Cable, Free Hanging, Plug-In.Part 3 consists of circuits.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
