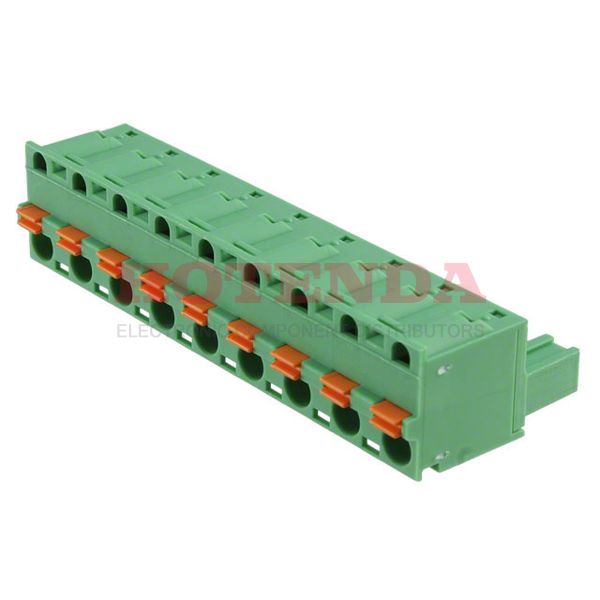

1939701

1939701

1939701

Phoenix Contact

1939701 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1939701 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 17.480004g
PackagingBulk
Published 2002
Series COMBICON GFKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 400V
Pitch 0.300 7.62mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 1kV
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 9
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Height 25.6mm
Length 15mm
Width 66.66mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:833 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$8.80000$440

1939701 Product Details

1939701 Overview


This product is packaged in a Socket box.Free Hanging (In-Line) is the type of mounting for the device.An orange Bulk case is used to package the product.It is part of the COMBICON GFKC Series of products.A number of benefits can be derived from the Retention Latches (Non-Wire Side) feature of this application.Free Hanging represents the mounting point for the part.There are a lot of similarities between this part and other Plug, Female Sockets products.

1939701 Features


COMBICON GFKC series

1939701 Applications


There are a lot of Phoenix Contact 1939701 Terminal Blocks applications.

  • Anywhere power is distributed
  • Communication
  • Embedded systems
  • Military Technology
  • Industrial Automation
  • Automotive Electronics
  • Telecommunications
  • Blowers
  • Refrigeration control
  • Data Technology
