Name: 1836696
Brand: Phoenix Contact
SKU: 1836696
Price: 4.80000 USD
Availability: InStock

new-10%

1836696

Manufacturer part number:1836696

Manufacturer:Phoenix Contact

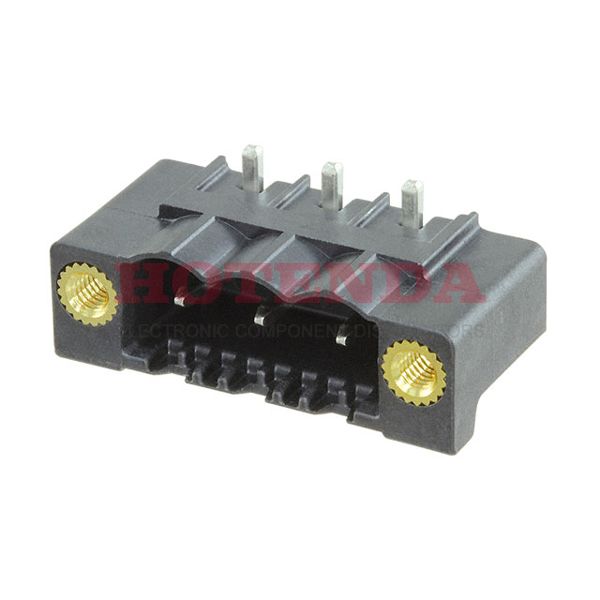

Description:Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON CC Liquid Crystal Polymer (LCP) Tin

Case Package:SOT-23

Datasheet:1836696 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C
Packaging	Bulk
Series	COMBICON CC
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Color	Black
Pitch	0.197 5.00mm
Insulation Height	0.298 7.57mm
Reach Compliance Code	not_compliant
Termination Style	Solder
Contact Tail Length	0.079 2.00mm
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	16A
Header Orientation	90°, Right Angle
Current - IEC	12A
RoHS Status	RoHS Compliant

1836696 Product Details

1836696 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON CC Series of products.A number of features make it more powerful because of its Mating Flange feature.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
