Name: 1936063
Brand: Phoenix Contact
SKU: 1936063
Price: 3.24000 USD
Availability: InStock

new-10%

1936063

Manufacturer part number:1936063

Manufacturer:Phoenix Contact

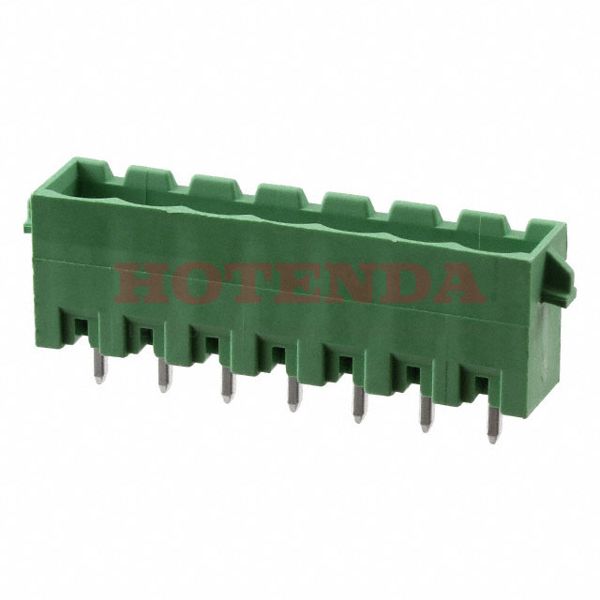

Description:Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MSTBVA Polybutylene Terephthalate (PBT)

Case Package:SOT-23

Datasheet:1936063 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	2.860013g
Packaging	Bulk
Published	2003
Series	COMBICON MSTBVA
Feature	Locking Ramp
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Depth	8.6mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	400V
Number of Ways	7
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	7
Height	15.9mm
Length	37.56mm
Width	41.38mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1936063 Product Details

1936063 Overview

This product is packaged in a Plug box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON MSTBVA Series.Furthermore, there are other features such as PBT, UL 94V0, to name a few.In many ways, Locking Ramp makes it more powerful.By Through Hole, the part is mounted.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
