Name: 1929520
Brand: Phoenix Contact
SKU: 1929520
Price: 18.35000 USD
Availability: InStock

new

1929520

Manufacturer part number:1929520

Manufacturer:Phoenix Contact

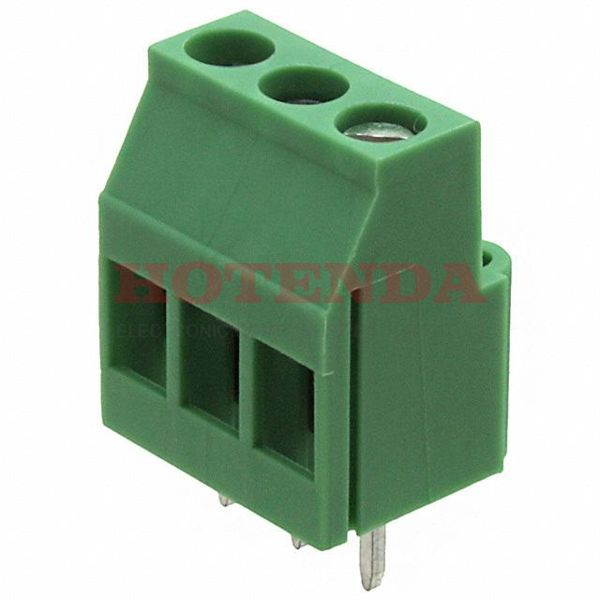

Description:0.400 10.16mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 6-20 AWG COMBICON MKDSP

Case Package:SOT-23

Datasheet:1929520 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	28.349523g
Packaging	Bulk
Series	COMBICON MKDSP
Published	2005
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	690V
Additional Feature	PA, 94V-0
Pitch	0.400 10.16mm
Orientation	Straight
Depth	30.8mm
Current Rating	76A
Approval Agency	CB, UL, cULus
Number of Contacts	3
Wire Gauge	6-20 AWG
Voltage	600V
Max Current Rating	57A
Number of Levels	1
Current	60A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	20 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M4
Stripping Length	10mm
Height	30.48mm
Length	30.48mm
Width	22mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1929520 Product Details

1929520 Overview

Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON MKDSP Series, it can be found in this category.There are also other features such as PA, 94V-0, to name only a few.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
