Phoenix Contact

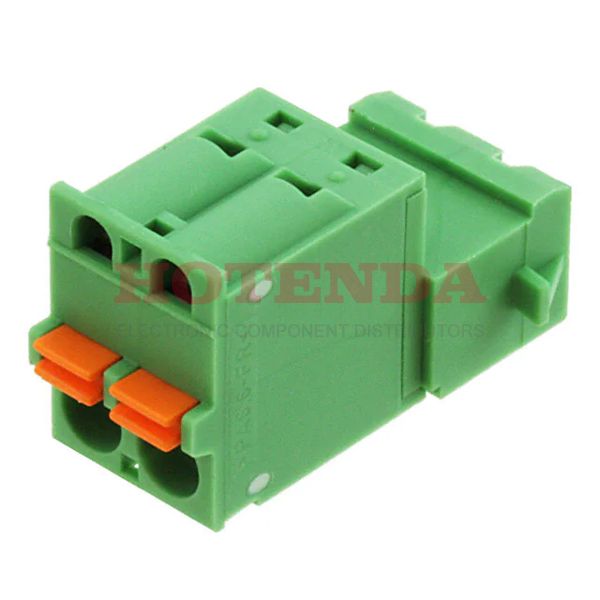

1925867 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1925867 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 3.399987g
PackagingBulk
Published 2003
Series COMBICON FKIC
Feature Locking Ramp
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Plug
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Additional FeaturePA, UL 94V0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 2
Fastening Method SPRING LOADED
Height 15.98mm
Length 15mm
Width 26.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:2789 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.741023$2.741023
10$2.585871$25.85871
100$2.439501$243.9501
500$2.301416$1150.708
1000$2.171147$2171.147

1925867 Product Details

1925867 Overview


Packaging is Plug.The mounting type of the device is Free Hanging (In-Line).Packaging the product involves using a Bulk case.It's part of the COMBICON FKIC Series.Additionally, there are features like PA, UL 94V0, just to name a few.There are a number of advantages to its Locking Ramp feature.You've got Free Hanging mounted on the part.Compared to other Plug, Male Pins products, this part has a lot of benefits to offer.

1925867 Features


COMBICON FKIC series

1925867 Applications


There are a lot of Phoenix Contact 1925867 Terminal Blocks applications.

  • Blowers
  • Control panels
  • Refrigeration control
  • Transportation
  • Measuring & Control Technology
  • Data Technology
  • Communication
  • Telecommunications
  • Energy efficient lighting (LED)
  • Embedded systems
