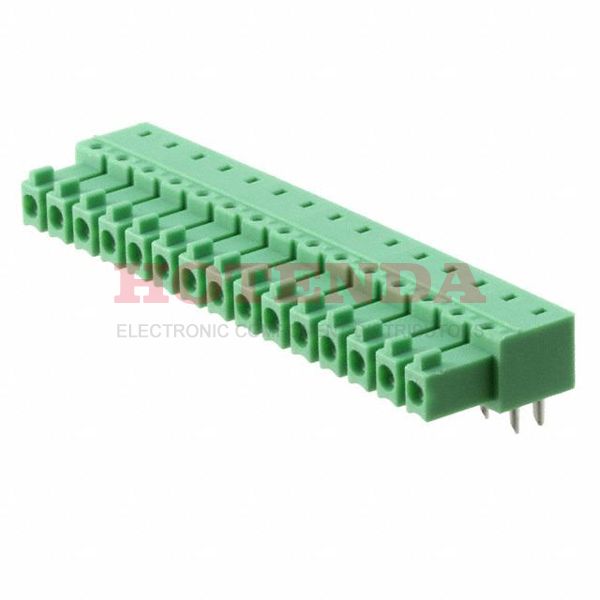

Name: 1862700
Brand: Phoenix Contact
SKU: 1862700
Price: 13.68000 USD
Availability: InStock

new

1862700

Manufacturer part number:1862700

Manufacturer:Phoenix Contact

Description:1862700 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1862700 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	5.059993g
Packaging	Bulk
Published	2011
Series	COMBICON IMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Female Sockets
Number of Positions	15
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Depth	5.3mm
Insulation Height	0.270 6.86mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	320V
Number of Ways	15
Safety Approval	UL; VDE
Header Orientation	90°, Right Angle
Length	10.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1862700 Product Details

1862700 Overview

Through Hole is the type of mounting for the device.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON IMC Series.Then there's PA, UL 94V-0, for example.It's mounted by Through Hole.There are a number of benefits that this part has in common with other Header, Female Sockets products.
