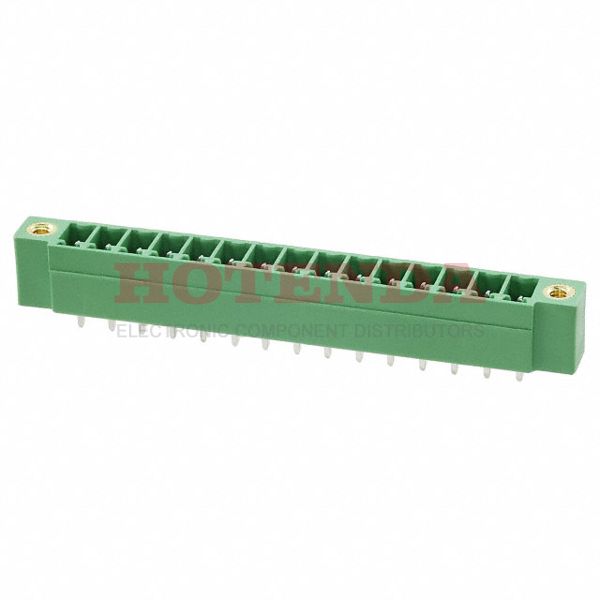

Name: 1830729
Brand: Phoenix Contact
SKU: 1830729
Price: 8.43000 USD
Availability: InStock

new

1830729

Manufacturer part number:1830729

Manufacturer:Phoenix Contact

Description:1830729 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830729 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2003
Series	COMBICON MCV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	15
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	15
Safety Approval	UL
Header Orientation	Vertical
Height	12.7mm
Length	67.54mm
Width	67.54mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1830729 Product Details

1830729 Overview

Currently, it is packaged in Plug.This device has a mounting type of Through Hole.An Bulk case is utilized for packaging the product.Among the products in the COMBICON MCV Series, it is one of the most popular.There are also features like PBT, 94V-0, just to name a few.This feature makes it more powerful in a number of ways due to its Mating and Mounting Flange feature.Through Hole is the mounting point for the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
