1913617

1913617

1913617

Phoenix Contact

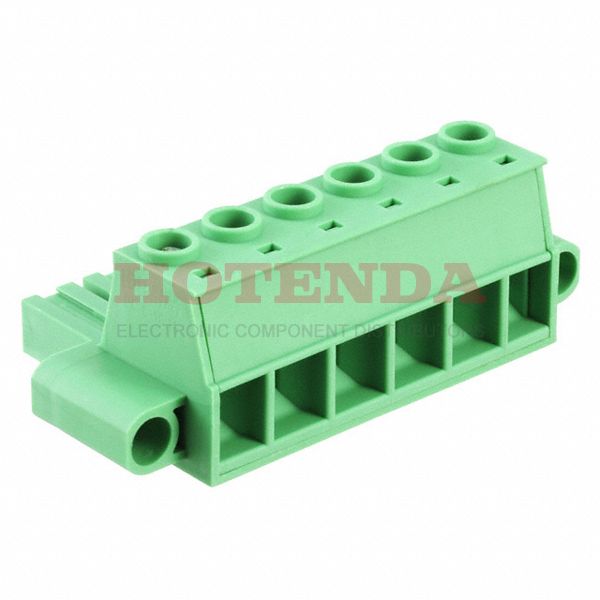

Bulk 0.400 10.16mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON PC Polyamide (PA), Nylon

SOT-23

1913617 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingSilver
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 53.029994g
PackagingBulk
Series COMBICON PC
Published 2002
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional FeaturePA, UL 94V0
Pitch 0.400 10.16mm
Insulation Height 1.085 27.55mm
Reach Compliance Code unknown
Current Rating41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 50A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 18 AWG
Number of Decks 1
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Screw Size M4
Height 39mm
Length 27.55mm
Width 78.72mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:291 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$27.090927$27.090927
10$25.557479$255.57479
100$24.110828$2411.0828
500$22.746064$11373.032
1000$21.458551$21458.551

1913617 Product Details

1913617 Overview


This product is packaged in a Screw, Socket box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON PC Series.Furthermore, there are other features such as PA, UL 94V0, to name a few.In many ways, Mating Flange makes it more powerful.By Free Hanging, the part is mounted.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1913617 Features


COMBICON PC series


1913617 Applications


There are a lot of Phoenix Contact
1913617 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
