Name: 1638860000
Brand: Weidmüller
SKU: 1638860000
Price: 5.37000 USD
Availability: InStock

new-10%

1638860000

Manufacturer part number:1638860000

Manufacturer:Weidmüller

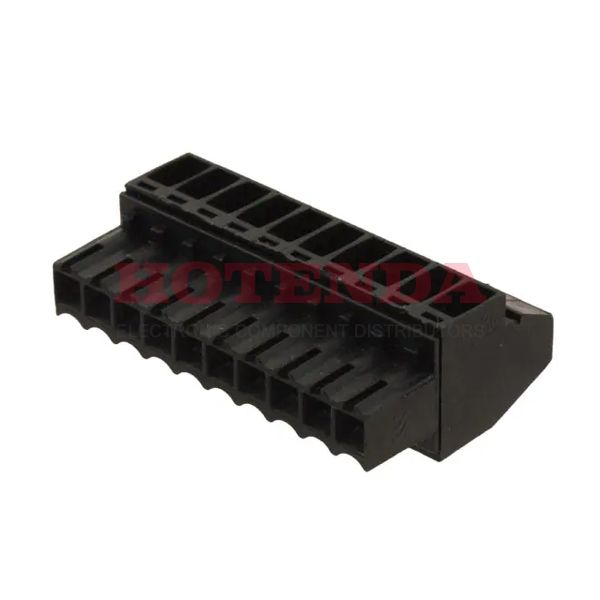

Description:Bulk 0.138 3.50mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy

Case Package:SOT-23

Datasheet:1638860000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate BL
Published	2009
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.884 22.45mm
Current Rating	8A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA
Number of Contacts	10
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	12A
Screw Size	M2
Stripping Length	6mm
Height	22.5mm
Length	35mm
Width	11.6mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1638860000 Product Details

1638860000 Overview

Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the Omnimate BL Series of products.Additionally, there are other features, such as HIGH DENSITY.Cable, Free Hanging mounts the part.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Plug, Female Sockets products.

1638860000 Features

Omnimate BL series

1638860000 Applications

There are a lot of Weidmüller
1638860000 Terminal Blocks applications.

Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers

Quantity	Unit Price	Ext. Price
1	$12.22000	$12.22
10	$10.46700	$104.67
25	$9.98840	$249.71
50	$8.97900	$448.95
100	$8.50080	$850.08
250	$7.70384	$1925.96
500	$7.17256	$3586.28
