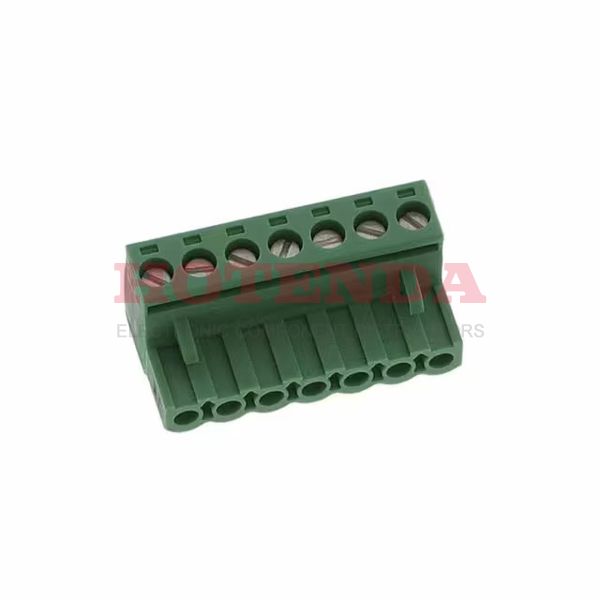

Name: 1911907
Brand: Phoenix Contact
SKU: 1911907
Price: 9.44000 USD
Availability: InStock

new

1911907

Manufacturer part number:1911907

Manufacturer:Phoenix Contact

Description:1911907 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1911907 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	11.720005g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	7
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	35mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1911907 Product Details

1911907 Overview

The product is packaged in Screw, Socket.This device has a Free Hanging (In-Line) mounting type.Bulk cases are used to package the product.The product is part of the COMBICON MSTB Series.Furthermore, there are other features available, such as PA, UL 94V0, to name a few.Its Retention Latches (Non-Wire Side) feature makes it more powerful in a number of ways.Free Hanging mounts the part.There are many benefits shared between this part and other Plug, Female Sockets products.
