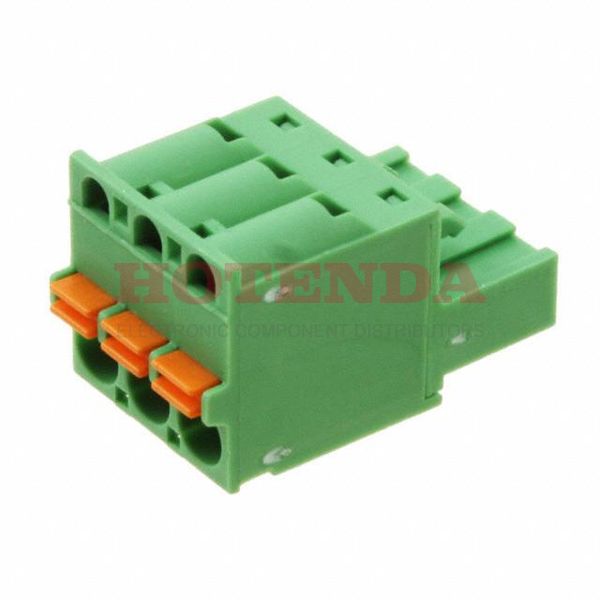

Name: 1910364
Brand: Phoenix Contact
SKU: 1910364
Price: 3.46000 USD
Availability: InStock

new-10%

1910364

Manufacturer part number:1910364

Manufacturer:Phoenix Contact

Description:1910364 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1910364 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	4.970012g
Packaging	Bulk
Published	2010
Series	COMBICON FKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, CSA, VDE, cULus
Number of Contacts	3
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	10A
Voltage - IEC	630V
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	15.1mm
Length	15mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1910364 Product Details

1910364 Overview

A Socket package is included with it.A Free Hanging (In-Line) mounting type is specified for the device.An Bulk case is utilized for packaging the product.It belongs to the COMBICON FKC Series of products.Among other features are PA, 94V-0, to name only a few.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging is mounting the part.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
