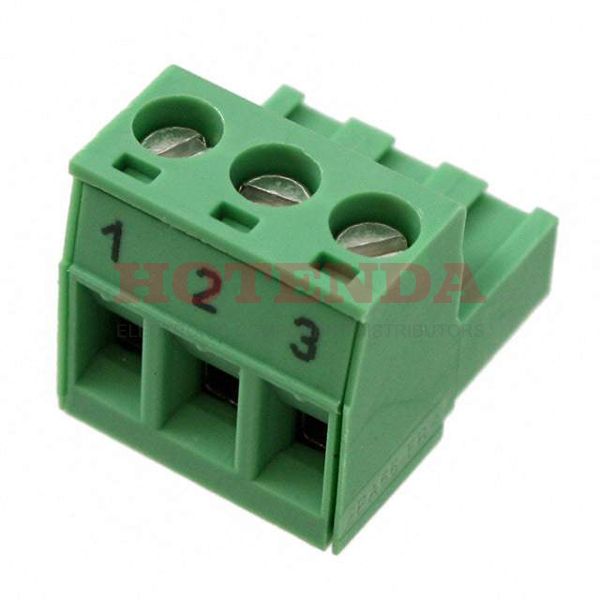

Name: 1762208
Brand: Phoenix Contact
SKU: 1762208
Price: 3.41000 USD
Availability: InStock

new-10%

1762208

Manufacturer part number:1762208

Manufacturer:Phoenix Contact

Description:1762208 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1762208 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	5.399989g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	3
Screw Size	M3
Stripping Length	7mm
Height	15.24mm
Length	15mm
Width	10.16mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1762208 Product Details

1762208 Overview

Currently, it is packaged in Screw, Socket.It's mounted Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.There is a product in the COMBICON MSTB Series.A number of aspects of its Positions Stamped, Retention Latches (Non-Wire Side) feature make it more powerful.There is a Cable, Free Hanging, Plug-In mount on the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
