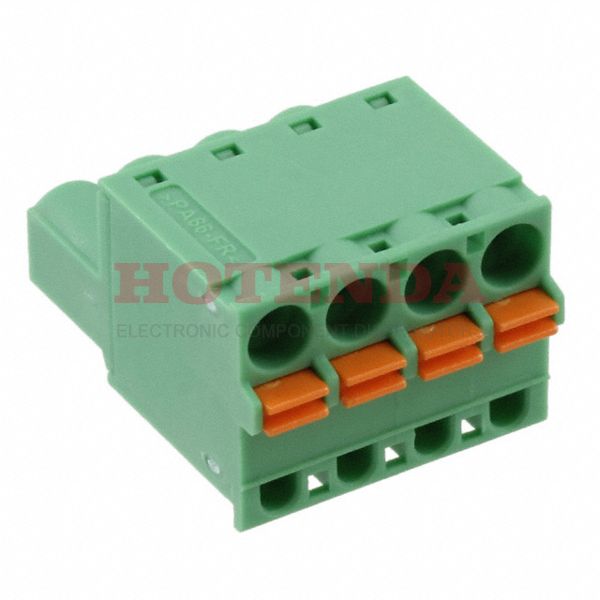

Name: 1902136
Brand: Phoenix Contact
SKU: 1902136
Price: 5.95000 USD
Availability: InStock

new-10%

1902136

Manufacturer part number:1902136

Manufacturer:Phoenix Contact

Description:1902136 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1902136 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	6.829995g
Packaging	Bulk
Published	2003
Series	COMBICON FKCT
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	20.42mm
Length	15mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1902136 Product Details

1902136 Overview

You'll get Socket packages.Mounting type Free Hanging (In-Line) is selected for the device.An orange Bulk case is used to package the product.The product is part of the COMBICON FKCT Series.This feature renders it more powerful in a number of ways because of its Retention Latches (Non-Wire Side) feature.This part is mounted by Free Hanging. There are many benefits that this part shares with other Plug, Female Sockets products as well.
