Molex

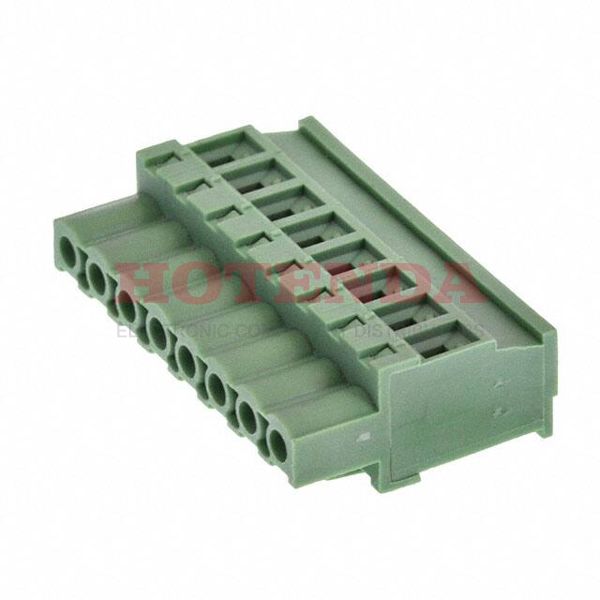

0395337008 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395337008 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialPhosphor Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~105°C
PackagingBulk
Series Eurostyle ESE 39533
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 8
Color Green
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 1.020 25.91mm
Reach Compliance Code unknown
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-26 AWG
Torque - Screw 0.56 Nm (5.0 Lb-In)
Plug Wire Entry 270°
Wire Strip Length 5mm
Number of Positions Per Level 8
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:1008 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.22000$6.22
10$4.78400$47.84
25$4.49280$112.32
50$4.01440$200.72
100$3.93120$393.12
250$3.64000$910
500$3.30720$1653.6

0395337008 Product Details

0395337008 Overview


A Free Hanging (In-Line) mounting type is specified for the device.Bulk cases are used to package the product.The product belongs to the Eurostyle ESE 39533 Series.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.There's a Cable, Free Hanging on the part.There is no operating temperature for the device.The benefts of this part are similar to those of other Plug, Female Sockets products.

0395337008 Features


Eurostyle ESE 39533 series

0395337008 Applications


There are a lot of Molex 0395337008 Terminal Blocks applications.

  • Automotive Electronics
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Refrigeration control
  • Communication
  • Variable speed/frequency drivers
  • Embedded systems
  • Instrumentation
  • Anywhere power is distributed
  • Blowers
