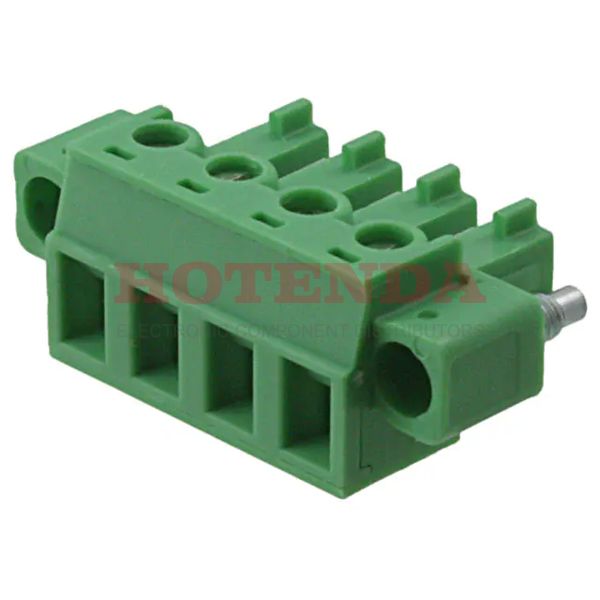

1900905

1900905

1900905

Phoenix Contact

1900905 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1900905 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 3.810006g
PackagingBulk
Published 2011
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.200 5.08mm
Depth 11.1mm
Insulation Height 0.437 11.10mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 630V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 4
Screw Size M2
Height 15.5mm
Length 11.1mm
Width 29.44mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:2015 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.163094$5.163094
10$4.870844$48.70844
100$4.595135$459.5135
500$4.335034$2167.517
1000$4.089655$4089.655

1900905 Product Details

1900905 Overview


The packaging contains Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.We use a Bulk case to package the product.The product belongs to the COMBICON MC Series.This feature makes it more powerful in a number of ways due to its Mating Flange feature.There is a mounting hole at Free Hanging.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

1900905 Features


COMBICON MC series

1900905 Applications


There are a lot of Phoenix Contact 1900905 Terminal Blocks applications.

  • Electrical substations
  • Datacom
  • Anywhere power is distributed
  • Variable speed/frequency drivers
  • Industrial Automation
  • Control panels
  • Measuring & Control Technology
  • Telecommunications
  • Data Technology
  • Automotive Electronics
