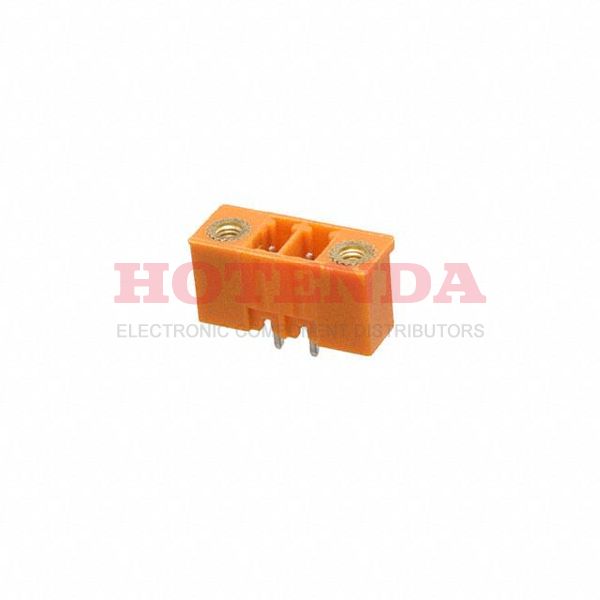

Name: 1943180000
Brand: Weidmüller
SKU: 1943180000
Price: 2.07000 USD
Availability: InStock

new-10%

1943180000

Manufacturer part number:1943180000

Manufacturer:Weidmüller

Description:1943180000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1943180000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate SC
Feature	Mating and Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Ingress Protection	IP20
Insulation Height	0.362 9.20mm
Current Rating	17.5A
Termination Style	Solder
Approval Agency	cURus
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Current - UL	10A
Voltage - IEC	320V
Number of Ways	2
Safety Approval	UL; CSA
Header Orientation	Vertical
Hole Diameter	1.2 mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1943180000 Product Details

1943180000 Overview

Mounting type Through Hole is selected for the device.It has been determined that a Bulk case is necessary to package the product.Among the products in the Omnimate SC Series, it is one of the most popular.Other features include STANDARD: UL 94V-0, to name just a few.Several benefits come from the Mating and Mounting Flange feature.Device runs in -50°C~120°C operating temperature.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
