1897416

1897416

1897416

Phoenix Contact

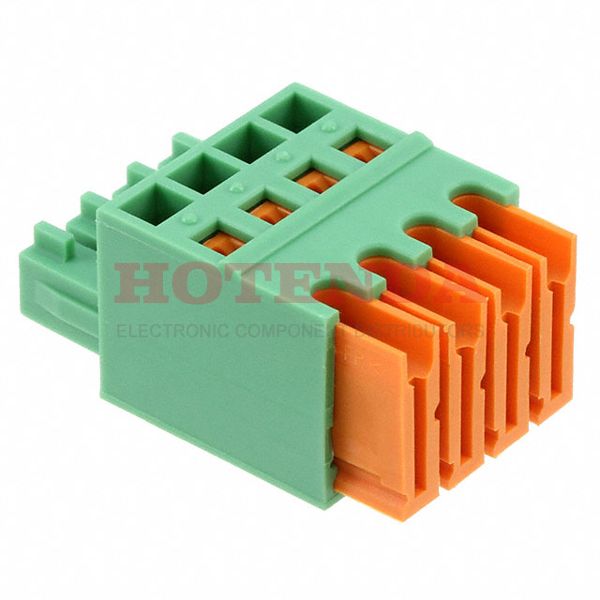

1897416 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1897416 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 96.999991g
PackagingBulk
Published 2003
Series COMBICON QC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 200V
Pitch 0.150 3.81mm
Insulation Height 0.508 12.90mm
Current Rating6A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 6A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 22 AWG
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 20-24 AWG
Voltage - IEC 400V
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.34-0.5mm2
Number of Positions Per Level 4
Fastening Method IDC
Height 16.03mm
Length 12.9mm
Width 22.3mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1025 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$6.32000$316

1897416 Product Details

1897416 Overview


It comes in a IDC, IDT, Socket package.There is a mounting type of Free Hanging (In-Line) for this device.It has been determined that a Bulk case is necessary to package the product.The product belongs to the COMBICON QC Series.By Free Hanging, the part is mounted.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

1897416 Features


COMBICON QC series

1897416 Applications


There are a lot of Phoenix Contact 1897416 Terminal Blocks applications.

  • Energy efficient lighting (LED)
  • Control panels
  • Transportation
  • Military Technology
  • Telecommunications
  • All Electrical Machinery
  • Communication
  • Measuring & Control Technology
  • Blowers
  • Instrumentation
