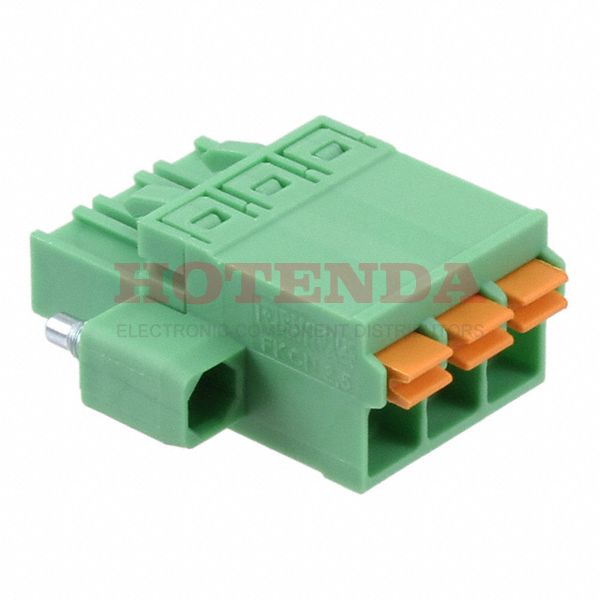

Phoenix Contact

1754801 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1754801 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2011
Series COMBICON FKCN
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 320V
Pitch 0.200 5.08mm
Insulation Height 0.429 10.90mm
Current Rating12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-24 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 3
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:1535 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.17000$4.17
10$4.05600$40.56
50$3.79060$189.53
100$3.48730$348.73
250$3.22196$805.49
500$3.07032$1535.16

1754801 Product Details

1754801 Overview


Free Hanging (In-Line) indicates that the device is mounted.We pack the product in a Bulk case.It is part of the COMBICON FKCN Series of products.A number of features make the Mating Flange, Retention Latches (Non-Wire Side) feature more powerful.Part Free Hanging is mounted to the part.Other Plug, Female Sockets products benefit from this part as well.

1754801 Features


COMBICON FKCN series

1754801 Applications


There are a lot of Phoenix Contact 1754801 Terminal Blocks applications.

  • Data Technology
  • Automotive Electronics
  • Communication
  • Anywhere power is distributed
  • Electrical substations
  • Blowers
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Refrigeration control
