Name: 1891182
Brand: Phoenix Contact
SKU: 1891182
Price: 5.41000 USD
Availability: InStock

new-10%

1891182

Manufacturer part number:1891182

Manufacturer:Phoenix Contact

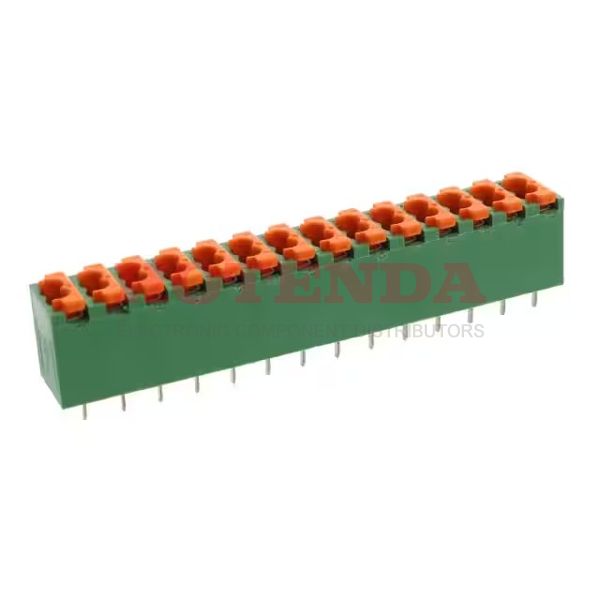

Description:0.138 3.50mm Green Bulk Polybutylene Terephthalate (PBT) Through Hole Vertical with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-28 AWG COMBICON FK-MPT

Case Package:SOT-23

Datasheet:1891182 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	4.500005g
Packaging	Bulk
Series	COMBICON FK-MPT
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Number of Positions	14
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Current Rating	4A
Wire Gauge	20-28 AWG
Voltage	300V
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	20 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	14
Safety Approval	UL
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Wire Cross Section	0.5 mm2
Fastening Method	SPRING LOADED
Length	7mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1891182 Product Details

1891182 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON FK-MPT Series.There is a mounting hole at Through Hole.
