Name: 1868128
Brand: Phoenix Contact
SKU: 1868128
Price: 1.79000 USD
Availability: InStock

new-10%

1868128

Manufacturer part number:1868128

Manufacturer:Phoenix Contact

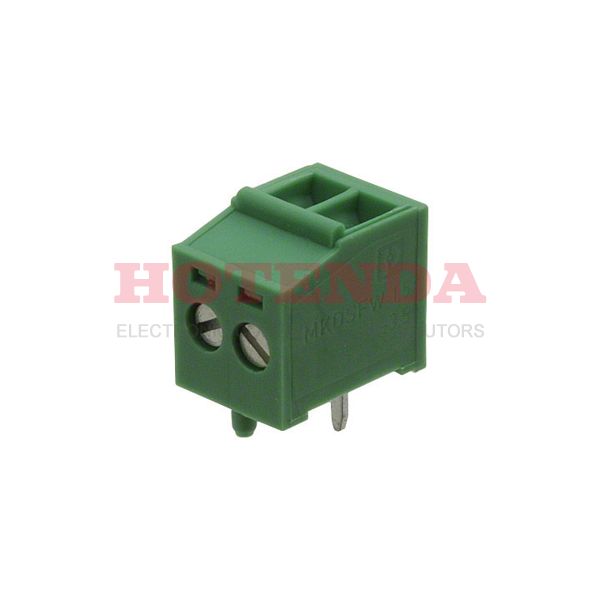

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSFW

Case Package:SOT-23

Datasheet:1868128 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.529995g
Packaging	Bulk
Series	COMBICON MKDSFW
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	11.3mm
Reach Compliance Code	unknown
Current Rating	12A
Number of Contacts	2
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	2
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Height	11.3mm
Length	11.3mm
Width	13.4mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1868128 Product Details

1868128 Overview

Packaging for this item is Screw.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON MKDSFW Series.Through Hole is used to mount the part.It is recommended that the supply voltage of this chip not exceed 160V.
