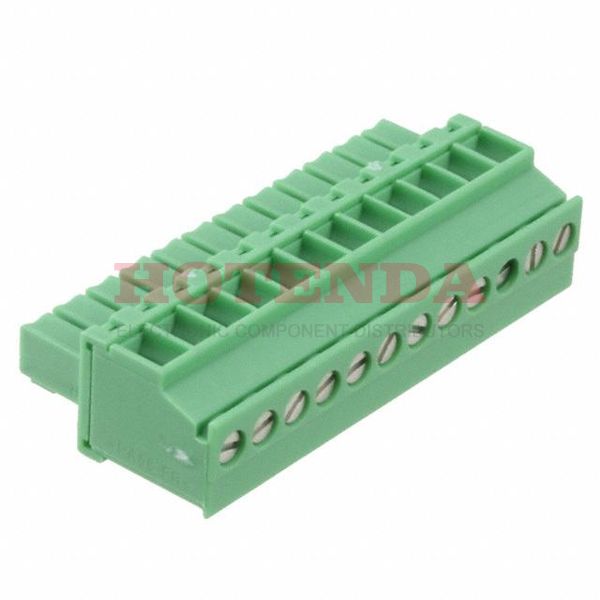

Name: 1862959
Brand: Phoenix Contact
SKU: 1862959
Price: 15.97000 USD
Availability: InStock

new

1862959

Manufacturer part number:1862959

Manufacturer:Phoenix Contact

Description:1862959 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1862959 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	8.81999g
Packaging	Bulk
Published	2012
Series	COMBICON MCVW
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	19.1mm
Insulation Height	0.752 19.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, UL, VDE, cULus
Lead Pitch	3.5mm
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Poles	12
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	12
Safety Approval	CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	10.4mm
Width	42.8mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1862959 Product Details

1862959 Overview

The product comes in a package of Screw, Socket.Mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.COMBICON MCVW Series product.There are also features like PA, UL 94V-0, just to name a few.The part is mounted by Cable, Free Hanging.This chip shouldn't have a voltage higher than 160V.Other Plug, Female Sockets products share lots of benefits with this part.
