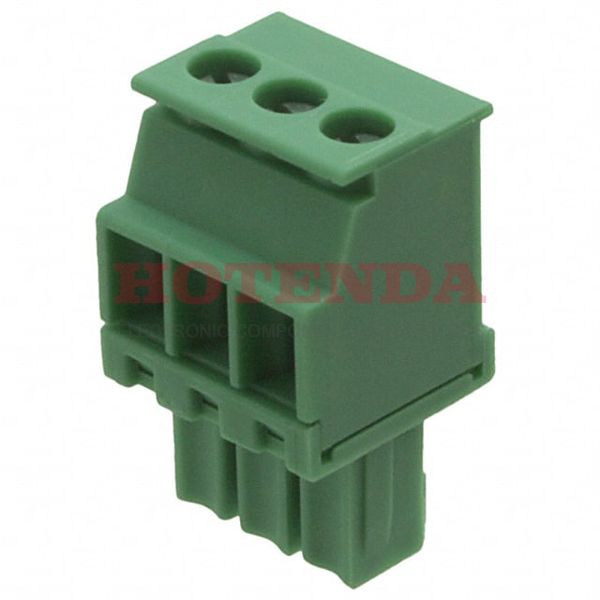

Name: 1862865
Brand: Phoenix Contact
SKU: 1862865
Price: 3.97000 USD
Availability: InStock

new-10%

1862865

Manufacturer part number:1862865

Manufacturer:Phoenix Contact

Description:1862865 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1862865 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	2.289989g
Packaging	Bulk
Published	2011
Series	COMBICON MCVW
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Pitch	0.138 3.50mm
Orientation	Straight
Depth	19.1mm
Insulation Height	0.752 19.10mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, UL, VDE, cULus
Lead Pitch	3.5mm
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Poles	3
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	10.4mm
Width	19.1mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1862865 Product Details

1862865 Overview

A Screw, Socket packaging is included.Free Hanging (In-Line) is the mounting type.Packaging the product involves using a Bulk case.Specifically, it is one of the products in the COMBICON MCVW Series.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.There is a mounting hole at Cable, Free Hanging.The benefts of this part are similar to those of other Plug, Female Sockets products.
