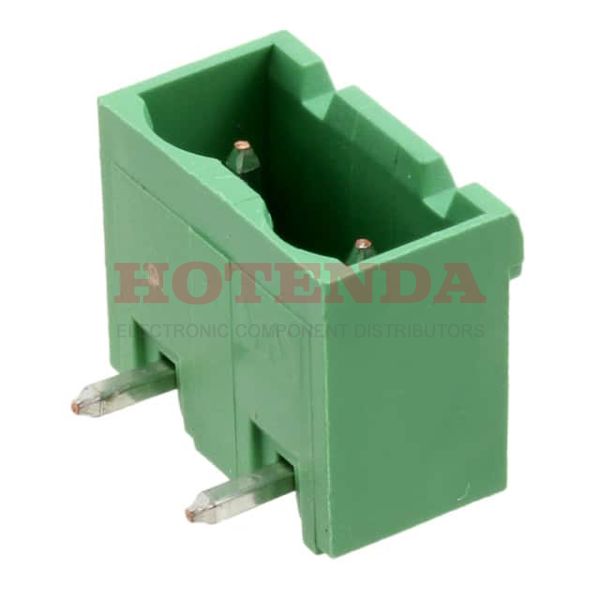

Name: 282966-2
Brand: TE Connectivity AMP Connectors
SKU: 282966-2
Price: 0.54000 USD
Availability: InStock

new-10%

282966-2

Manufacturer part number:282966-2

Manufacturer:TE Connectivity AMP Connectors

Description:282966-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:282966-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Copper Alloy
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.329 8.36mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Shrouding	Yes
Number of Contacts	2
Housing Color	Green
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Positions Per Level	2
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Length	14.44mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282966-2 Product Details

282966-2 Overview

A Header package is included with it.Its mounting type is Through Hole.Packaging for the product is carried out via a Bulk case.Product number Buchanan belongs to the Buchanan Series.Ideally, it should be used when the temperature is below 105°C.There must be a minimum temperature of -40°C for this device to operate.By Through Hole it's mounted.The device is operating at -40°C~110°C Operating Temperature.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
