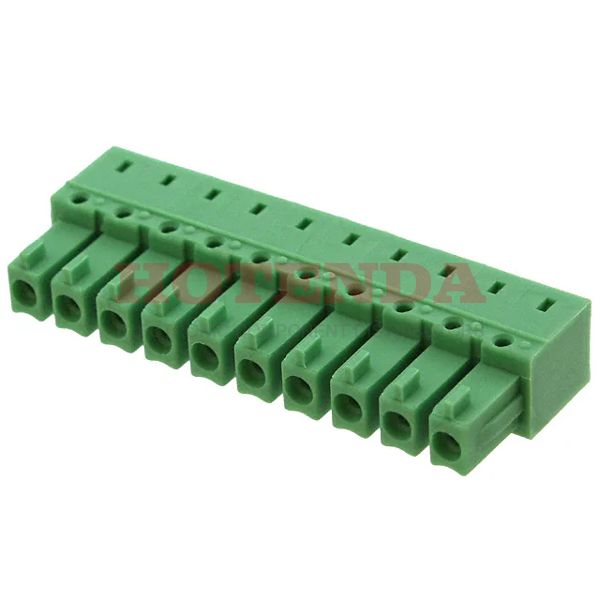

Name: 1862658
Brand: Phoenix Contact
SKU: 1862658
Price: 12.56000 USD
Availability: InStock

new

1862658

Manufacturer part number:1862658

Manufacturer:Phoenix Contact

Description:1862658 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1862658 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	3.369993g
Packaging	Bulk
Published	2011
Series	COMBICON IMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Socket
Type	Header, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	14.5mm
Insulation Height	0.270 6.86mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	10
Number of Decks	1
Voltage - IEC	320V
Number of Ways	10
Safety Approval	CB; CCA; CUL; EAC; UL; VDE
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	7mm
Length	38.89mm
Width	14.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1862658 Product Details

1862658 Overview

This product is packaged in a Socket cartonThere is a mounting type of Through Hole for this device.Packaged in a Bulk case.COMBICON IMC Series product.Additionally, there are features like STANDARD: UL 94V-0, PA, just to name a few.In this case, Through Hole mounts the part.There are a lot of similarities between this part and other Header, Female Sockets products.
