1945232

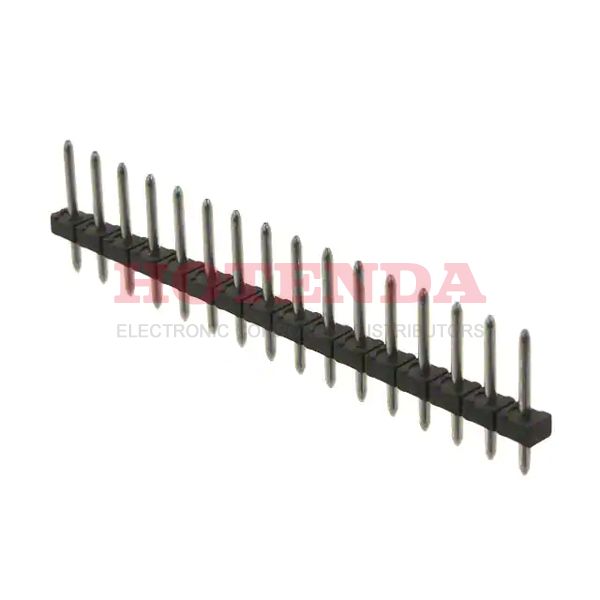

1945232

1945232

Phoenix Contact

1945232 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1945232 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialCopper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.719994g
PackagingBulk
Published 2005
Series COMBICON PST
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Number of Positions 16
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Orientation Straight
Depth 2.8mm
Insulation Height 0.512 13.00mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.150 3.81mm
Max Current Rating 8A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 16
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 16
Height 13mm
Length 56mm
Width 56mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:6139 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.399463$1.399463
10$1.320248$13.20248
100$1.245517$124.5517
500$1.175016$587.508
1000$1.108506$1108.506

1945232 Product Details

1945232 Overview


This device's mounting type is Through Hole.We use a Bulk case to package the product.This product is part of the COMBICON PST Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.Mounted by Through Hole.Many Header, Male Pins, Unshrouded products share the same benefits as this part.

1945232 Features


COMBICON PST series

1945232 Applications


There are a lot of Phoenix Contact 1945232 Terminal Blocks applications.

  • Refrigeration control
  • Embedded systems
  • Data Technology
  • Military Technology
  • Instrumentation
  • Communication
  • Medical technology
  • Telecommunications
  • Measuring & Control Technology
  • Transportation
