Name: 1858824
Brand: Phoenix Contact
SKU: 1858824
Price: 17.56000 USD
Availability: InStock

new

1858824

Manufacturer part number:1858824

Manufacturer:Phoenix Contact

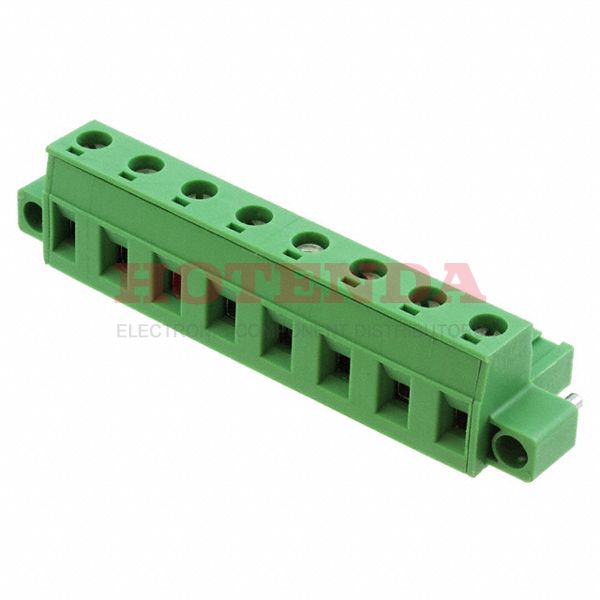

Description:Bulk 0.300 7.62mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON GMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1858824 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	167.00001g
Packaging	Bulk
Series	COMBICON GMSTB
Published	2011
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, UL, VDE
Voltage	300V
Max Supply Voltage	400V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	8
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	71.35mm
Width	18.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1858824 Product Details

1858824 Overview

Currently, it is packaged in Screw, Socket.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the COMBICON GMSTB Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.A number of features make the Mating Flange feature more powerful.Cable, Free Hanging represents the mounting point for the part.This chip should not be supplied with voltages greater than zero.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
