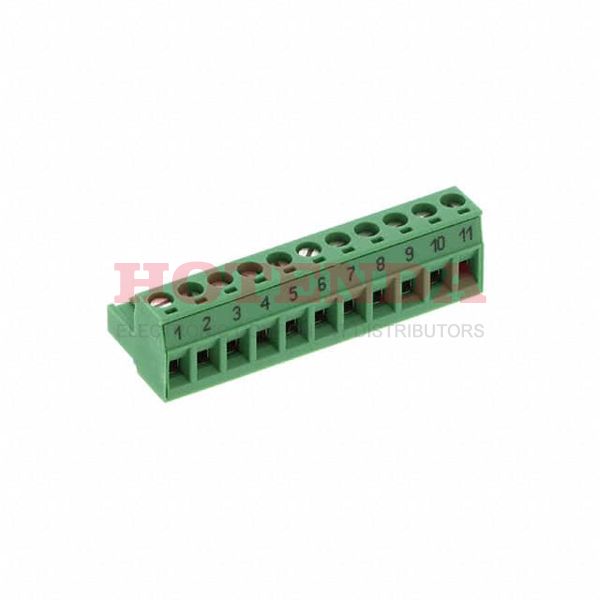

Name: 1760129
Brand: Phoenix Contact
SKU: 1760129
Price: 12.07000 USD
Availability: InStock

new

1760129

Manufacturer part number:1760129

Manufacturer:Phoenix Contact

Description:1760129 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1760129 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	19.320002g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Poles	11
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	11
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	18.3mm
Length	15mm
Width	55.88mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1760129 Product Details

1760129 Overview

Screw, Socket packaging is included.There is a mounting type of Free Hanging (In-Line) for this device.An orange Bulk case is used to package the product.It's part of the COMBICON MSTB Series.A number of features make it more powerful because of its Positions Stamped, Retention Latches (Non-Wire Side) feature.By Free Hanging, Plug-In it's mounted.There are a lot of similarities between this part and other Plug, Female Sockets products.
