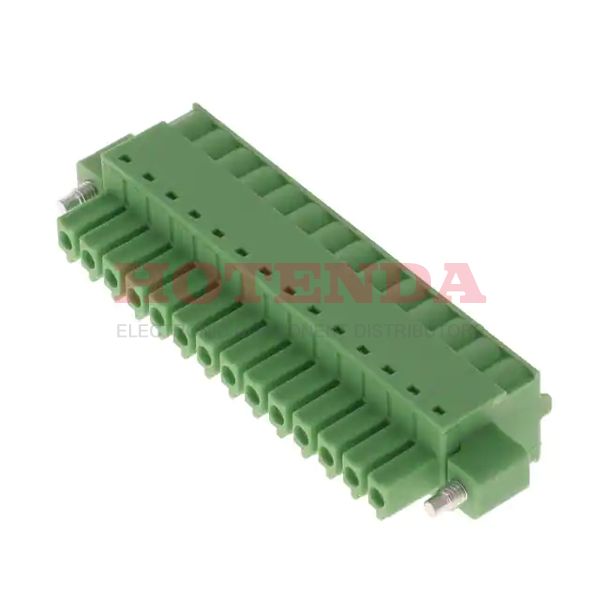

Name: 1851355
Brand: Phoenix Contact
SKU: 1851355
Price: 30.03000 USD
Availability: InStock

new

1851355

Manufacturer part number:1851355

Manufacturer:Phoenix Contact

Description:1851355 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1851355 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	101.999997g
Packaging	Bulk
Published	2009
Series	COMBICON FK-MCP
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	14
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	26 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	14
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Fastening Method	SPRING LOADED
Height	20.8mm
Length	12.4mm
Width	63.73mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1851355 Product Details

1851355 Overview

Packaging is Socket.A Free Hanging (In-Line) mounting type is specified for the device.An orange Bulk case is used to package the product.It is part of the COMBICON FK-MCP Series of products.In addition, there are other features, such as PA, 94V-0, to mention just a few.A number of features make it more powerful because of its Mating Flange feature.There's a Free Hanging on the part.Other Plug, Female Sockets products benefit from this part as well.
