Name: 1849396
Brand: Phoenix Contact
SKU: 1849396
Price: 5.88000 USD
Availability: InStock

new-10%

1849396

Manufacturer part number:1849396

Manufacturer:Phoenix Contact

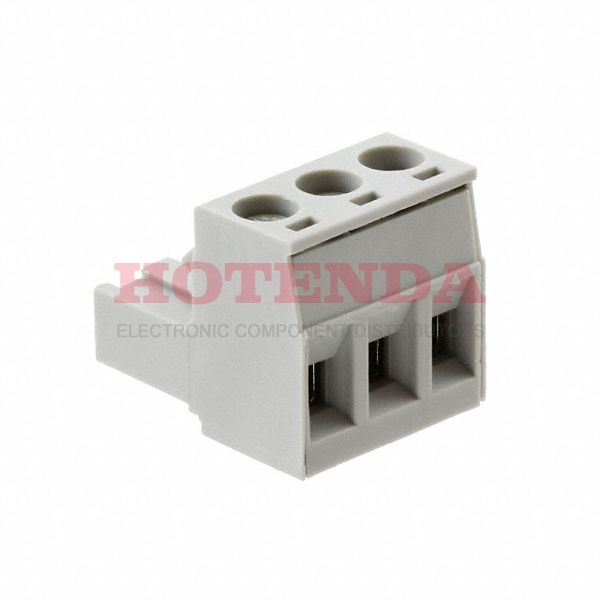

Description:Bulk 0.200 5.08mm Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Gold

Case Package:SOT-23

Datasheet:1849396 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Series	COMBICON MSTB
Published	2011
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	3
Color	Gray
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Gold
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	3
Screw Size	M3
Length	10.16mm
RoHS Status	RoHS Compliant

1849396 Product Details

1849396 Overview

Packaging for this item is Screw.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON MSTB Series.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Free Hanging, Plug-In is used to mount the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
