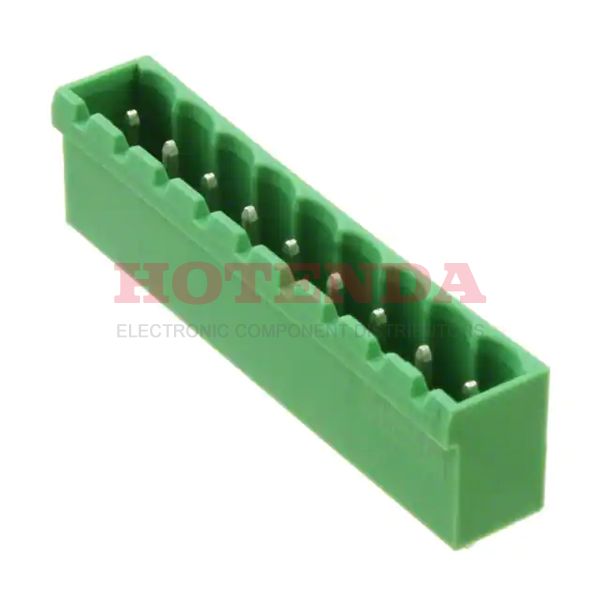

Name: 1755804
Brand: Phoenix Contact
SKU: 1755804
Price: 3.31000 USD
Availability: InStock

new-10%

1755804

Manufacturer part number:1755804

Manufacturer:Phoenix Contact

Description:1755804 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755804 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	154.999997g
Packaging	Bulk
Published	2000
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated DC	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	250V
Approval Agency	CSA, UL
Lead Pitch	5.08mm
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	9
Number of Decks	1
Voltage - IEC	630V
Number of Ways	9
Safety Approval	CCA; CB; CSA; CUL; GOST; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	15.9mm
Length	47.72mm
Width	47.72mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755804 Product Details

1755804 Overview

The product is packaged in Plug.Through Hole is the mount type.It's packaged in a Bulk case.It's part of the COMBICON MSTBVA Series.You've got Through Hole mounted on the part.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
