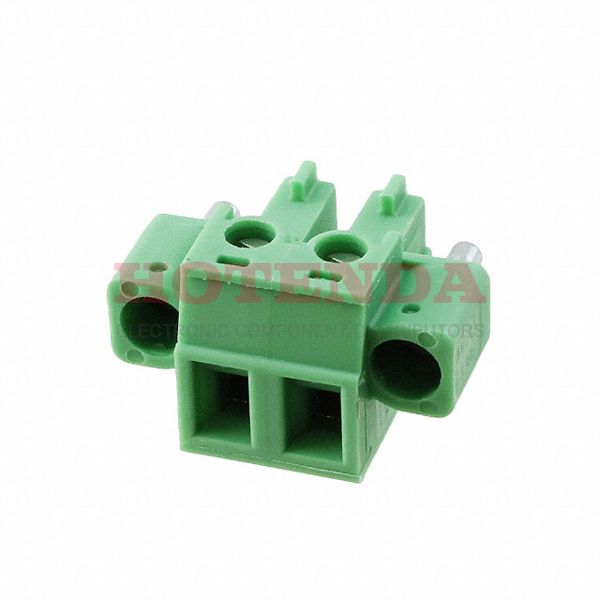

Name: 1847356
Brand: Phoenix Contact
SKU: 1847356
Price: 2.80000 USD
Availability: InStock

new-10%

1847356

Manufacturer part number:1847356

Manufacturer:Phoenix Contact

Description:1847356 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1847356 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	105g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	50
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Fastening Method	SOLDER
Height	15.5mm
Length	11.1mm
Width	19.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1847356 Product Details

1847356 Overview

Packaging is Screw, Socket.A Free Hanging (In-Line) mounting type is specified for the device.A Bulk case is used for packaging.This is from the COMBICON MC Series.In many ways, its Mating Flange feature makes it more powerful.It's mounted by Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.
