Name: 1-1986300-2
Brand: TE Connectivity
SKU: 1-1986300-2
Price: 2.79000 USD
Availability: InStock

new-10%

1-1986300-2

Manufacturer part number:1-1986300-2

Manufacturer:TE Connectivity

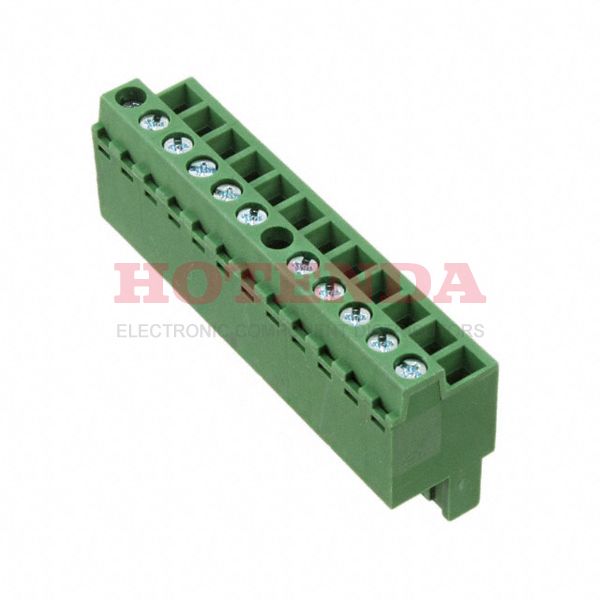

Description:5mm Green 1 Levels Polyamide Bronze

Case Package:SOT-23

Datasheet:1-1986300-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Bronze
Contact Plating	Tin
Mount	Cable, Free Hanging
Housing Material	Polyamide
Published	2010
Part Status	Discontinued
Termination	Screw
Connector Type	Plug
Number of Positions	12
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	5mm
Orientation	Straight
Current Rating	16A
Voltage - Rated AC	300V
Approval Agency	UL
Number of Contacts	12
Housing Color	Green
Voltage	300V
ELV	Compliant
Number of Circuits	12
Number of Levels	1
Current	16A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	24 AWG
Number of Poles	12
Number of Positions Per Level	12
Length	60mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1-1986300-2 Product Details

1-1986300-2 Overview

This product is packaged in a Plug carton.Ideally, it should be used when the temperature is below 105°C.Temperature must be -40°C to operate this device.Mounting of the part is based on Cable, Free Hanging.A circuit of 12 makes up this part.
