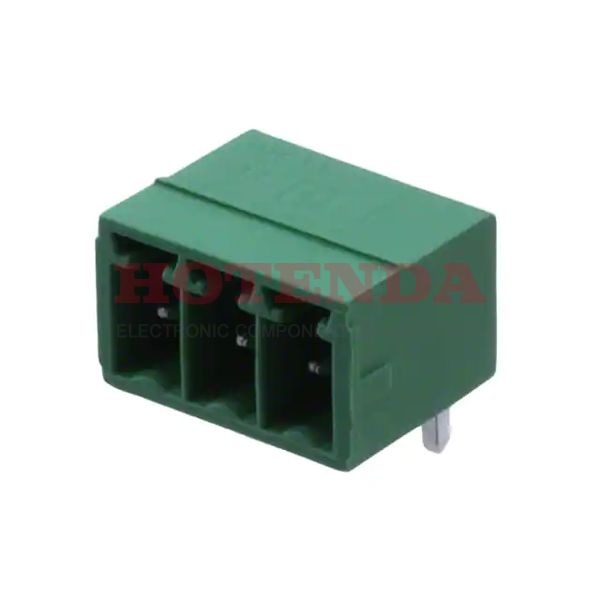

Name: 1844223
Brand: Phoenix Contact
SKU: 1844223
Price: 1.56000 USD
Availability: InStock

new-10%

1844223

Manufacturer part number:1844223

Manufacturer:Phoenix Contact

Description:1844223 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1844223 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Voltage - Rated DC	250V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	3
Number of Decks	1
Number of Ways	3
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	12A
Fastening Method	CONNECTOR
Height	7.4mm
Length	11.9mm
Width	9.2mm
Thickness	7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1844223 Product Details

1844223 Overview

This product is packaged in a Plug box.Mounting type is Through Hole.We package the product with a Bulk case.Among the products in the COMBICON MC Series, it is one of the most popular.Temperature must be -40°C to operate this device.Through Hole is mounting the part.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
