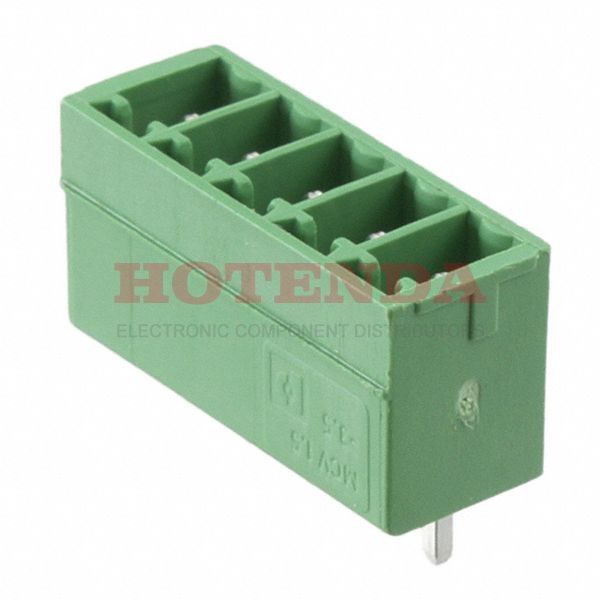

Name: 1843635
Brand: Phoenix Contact
SKU: 1843635
Price: 2.60000 USD
Availability: InStock

new-10%

1843635

Manufacturer part number:1843635

Manufacturer:Phoenix Contact

Description:1843635 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843635 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2001
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CSA, UL
Lead Pitch	3.5mm
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	5
Number of Decks	1
Voltage - IEC	250V
Number of Ways	5
Safety Approval	UL; VDE; CSA
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	12.6mm
Length	18.9mm
Width	18.9mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843635 Product Details

1843635 Overview

A Plug packaging is included.Through Hole is the mount type.Packaging for the product is carried out via a Bulk case.This product is part of the COMBICON MCV Series.Through Hole is used to mount the part.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
