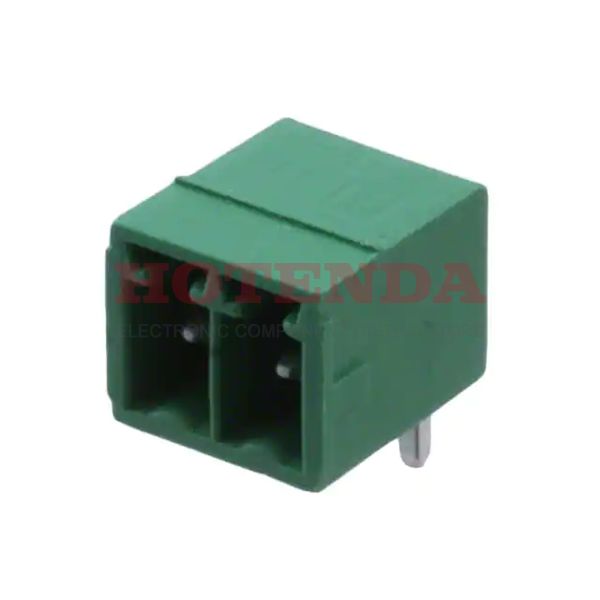

Name: 1844210
Brand: Phoenix Contact
SKU: 1844210
Price: 1.04000 USD
Availability: InStock

new-10%

1844210

Manufacturer part number:1844210

Manufacturer:Phoenix Contact

Description:1844210 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1844210 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2005
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Voltage - Rated DC	250V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	2
Number of Decks	1
Number of Ways	2
Safety Approval	UL; VDE; CSA
Header Orientation	90°, Right Angle
Current - IEC	12A
Height	7.25mm
Length	8.4mm
Width	10.65mm
Thickness	3.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1844210 Product Details

1844210 Overview

This product is packaged in a Plug carton.The device's mounting type is Through Hole.Packaging the product involves using a Bulk case.This is from the COMBICON MC Series.There's a Through Hole mount on the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
