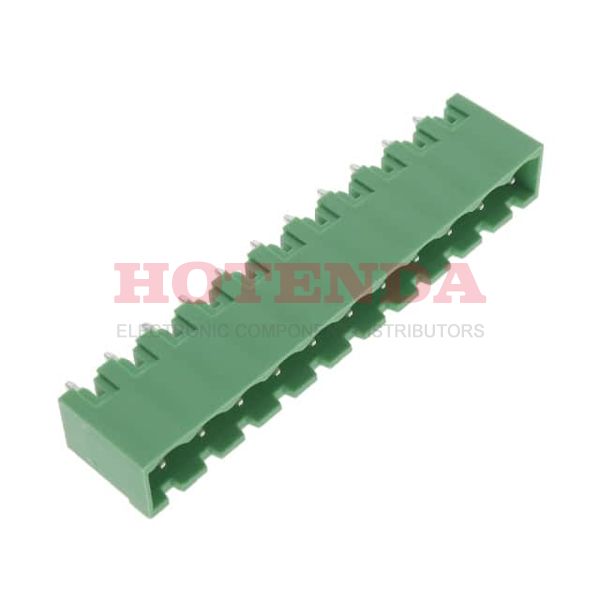

Name: 0395316011
Brand: Molex
SKU: 0395316011
Price: 3.51000 USD
Availability: InStock

new-10%

0395316011

Manufacturer part number:0395316011

Manufacturer:Molex

Description:0395316011 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395316011 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39531
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	11
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
Pitch	0.200 5.08mm
Orientation	Vertical
Depth	8.3mm
Insulation Height	0.472 12.00mm
Termination Style	Solder
Number of Contacts	11
Housing Color	Green
Voltage	300V
Contact Tail Length	0.130 3.30mm
Max Voltage Rating (AC)	300V
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Positions Per Level	11
Header Orientation	Vertical
Number of Positions Per Level	11
Length	57.88mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395316011 Product Details

0395316011 Overview

A Through Hole mounting type is specified for the device.It's packaged in a Bulk case.This product is in the Eurostyle ESE 39531 Series.Use it when the temperature is below 105°C.Minimum temperature is -40°C.Through Hole represents the mounting point for the part.In this case, the device operates at -40°C~105°C Operating Temperature.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
