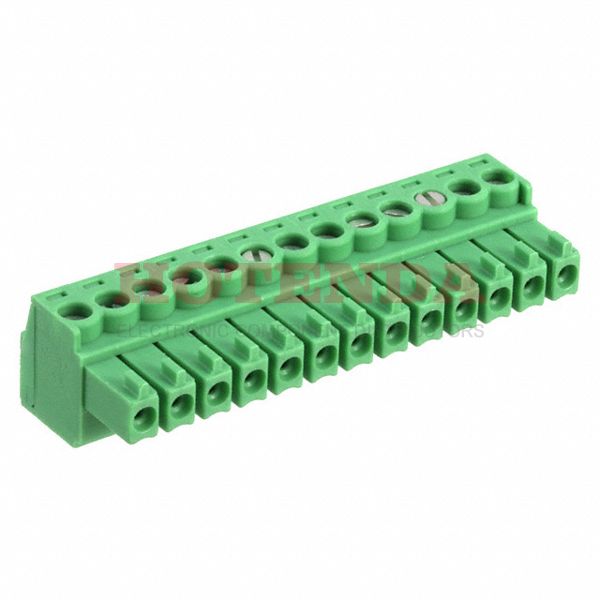

Name: 1840476
Brand: Phoenix Contact
SKU: 1840476
Price: 17.61000 USD
Availability: InStock

new

1840476

Manufacturer part number:1840476

Manufacturer:Phoenix Contact

Description:1840476 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1840476 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	97.999992g
Packaging	Bulk
Published	2011
Series	MINI-COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	11.1mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL, VDE, cULus
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Poles	13
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	13
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	16.1mm
Length	45.5mm
Width	16.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1840476 Product Details

1840476 Overview

Screw, Socket packaging is included.A Free Hanging (In-Line) mounting type is specified for the device.Bulk cases are used to package the product.This product is from the MINI-COMBICON MC Series.Furthermore, there are other features such as PA, 94V-0, to name a few.Cable, Free Hanging is used to mount the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
