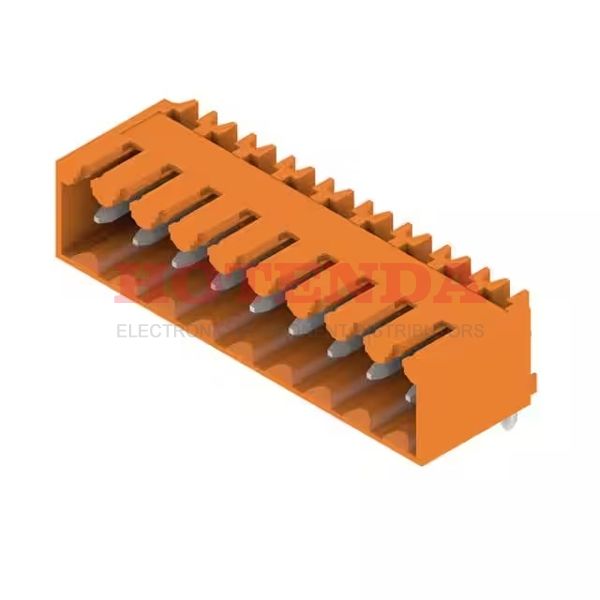

Name: 1605140000
Brand: Weidmüller
SKU: 1605140000
Price: 4.66000 USD
Availability: InStock

new-10%

1605140000

Manufacturer part number:1605140000

Manufacturer:Weidmüller

Description:1605140000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1605140000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	9
Orientation	Right Angle
Ingress Protection	IP10
Depth	11.1mm
Insulation Height	0.298 7.57mm
Current Rating	14.5A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Number of Poles	9
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	90°, Right Angle
Current - IEC	17A
Hole Diameter	1.3 mm
Length	32.9mm
Width	11.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1605140000 Product Details

1605140000 Overview

Through Hole indicates that the device is mounted.Packaged in a Bulk case.It is part of the Omnimate SL Series of products.Part Through Hole is mounted to the part.The device runs in -50°C~100°C Operating Temperature.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
